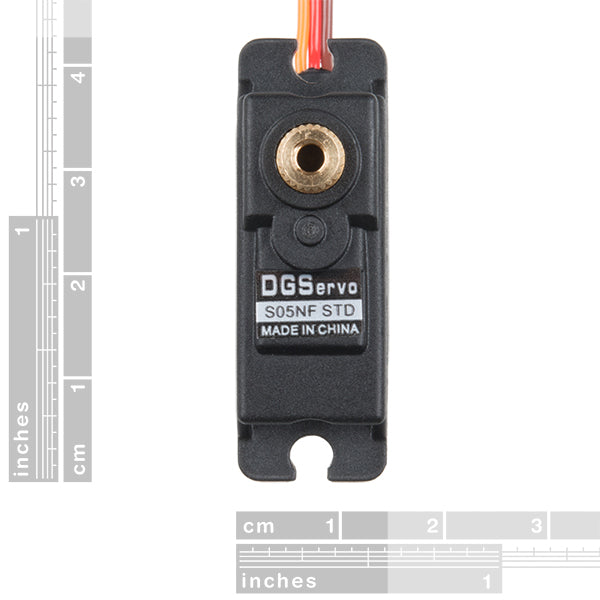

Servo - Generic Metal Gear (Micro Size)

ROB-14760

7 items left


Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 44.4 oz-in. of maximum torque at 0.18 sec/60°

This is a small servo with a standard 3 pin power and control cable (red = power, brown = ground, and yellow = data), and all hardware listed below.

Features

  • Voltage: 4.8-6.0 Volts
  • Torque: 38.8/44.4 oz-in. (4.8/6.0V)
  • Speed: 0.20/0.18 sec/60° (4.8/6.0V)
  • Rotation: 180°
  • Dual Ball Bearing
  • Metal Gears* 28.8 x 13.8 x 30.2mm
  • Wire Length: 180mm
  • Weight: 20g
