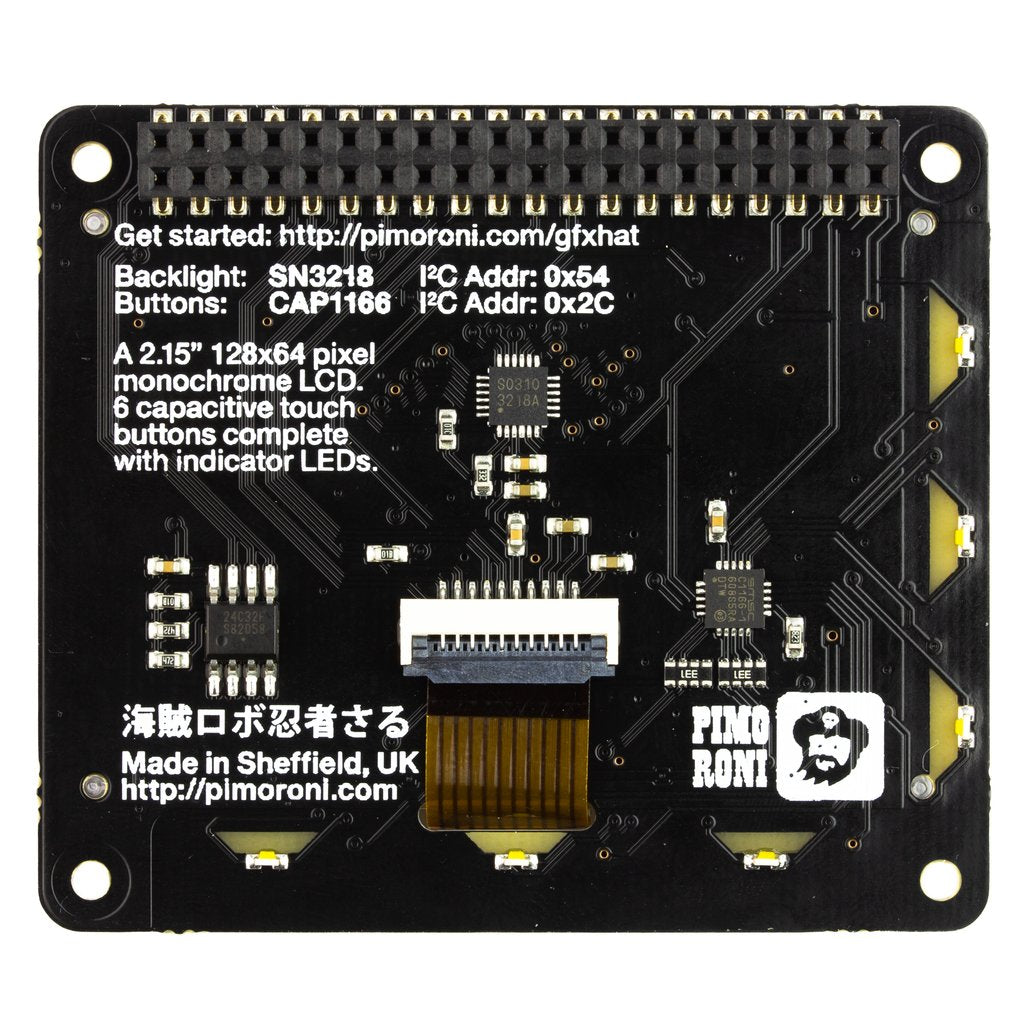

GFX HAT - 128x64 LCD Display with RGB Backlight and Touch Buttons

View on PiShop.ca (SKU 1614)

A 128x64 pixel, 2.15" LCD display with snazzy six-zone RGB backlight and six capacitive touch buttons. GFX HAT makes an ideal display and interface for your headless Pi projects.

GFX HAT gives you the flexibility of individual pixels, letting you display more complex graphics and real typefaces, while retaining the handy capacitive touch buttons for input/navigation.

Features

• 128x64 pixel, 2.15" LCD display
• Integrated diffuser/reflector assembly
• Six-zone RGB LED backlight
• SN3218 LED driver chip (I2C address 0x54)
• Six capacitive touch buttons with white LEDs
• Microchip CAP1166 capacitive touch/LED driver chip ((I2C address 0x2c)
• Compatible with all 40-pin header Raspberry Pi models
• Python library
• Comes fully assembled

Software

Our Python library handles displaying on the LCD, controlling the backlight, and linking functions to the touch buttons. We've also included a couple of examples to get you started.
