Pico Display Pack

PIM543

Elmwood Electronics has stopped accepting orders. This product might be available at PiShop.ca. Please check this blog post about our recent team merger.

View on PiShop.ca (SKU 1453)

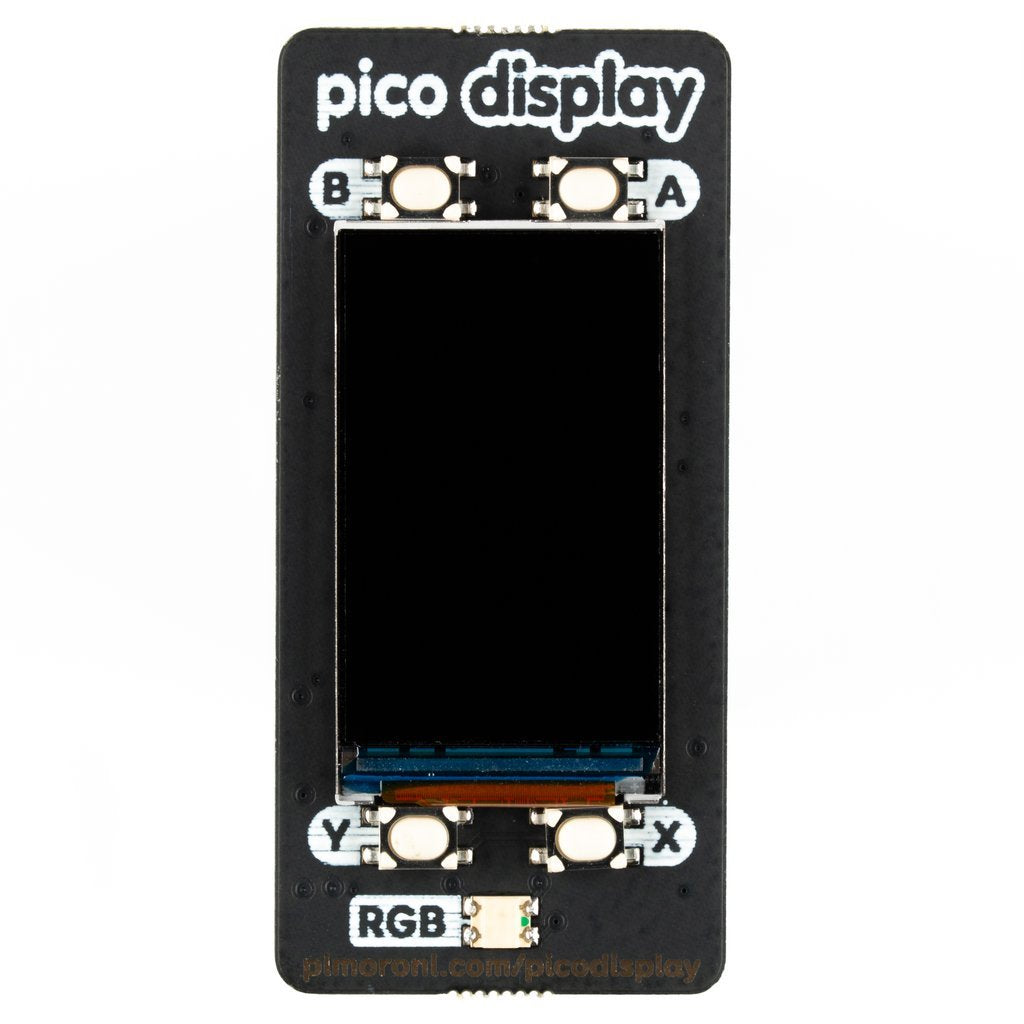

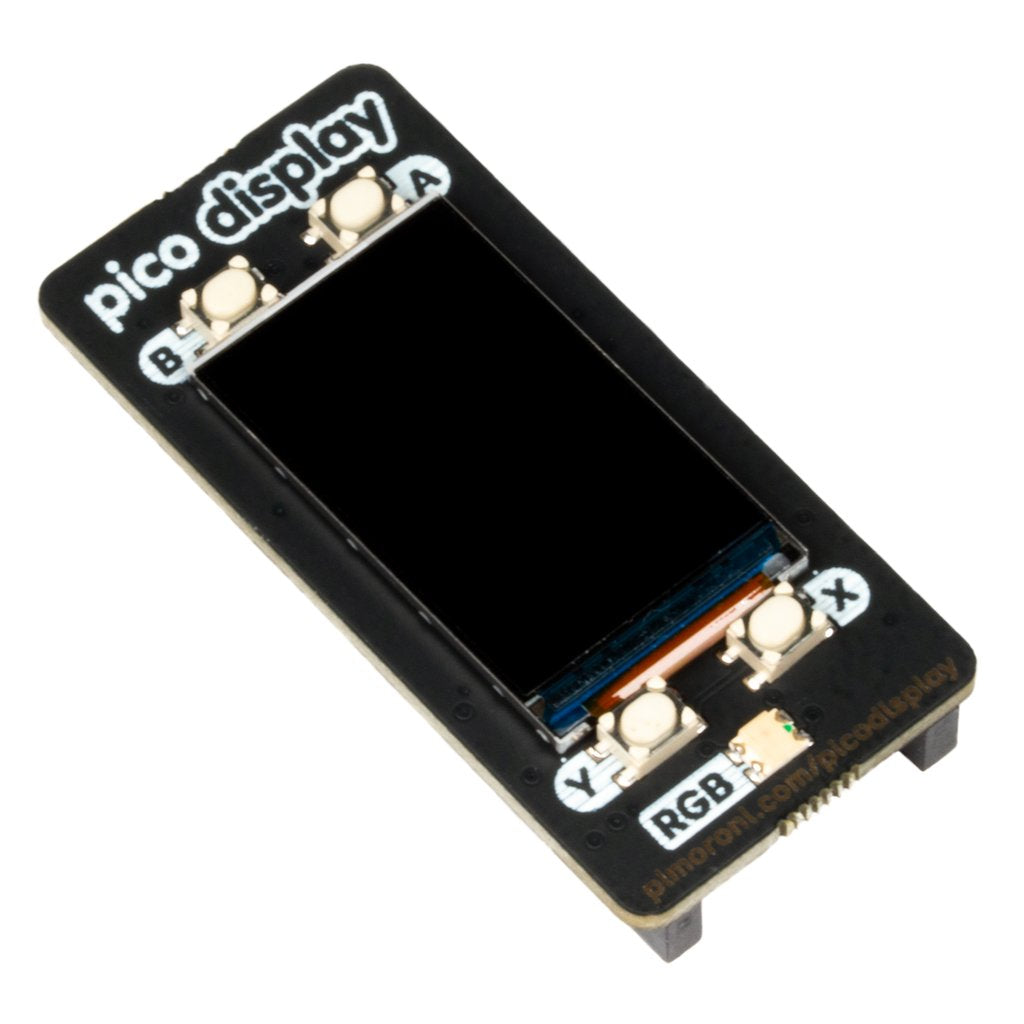

A vibrant 1.14" IPS LCD screen for your Raspberry Pi Pico, with four useful buttons and a RGB LED!

We've sourced a new LCD screen especially for our Pico Display Pack - it's a lovely, bright 18-bit capable 240x135 pixel IPS display and fits the Pico perfectly. We've surrounded it with four tactile buttons so you can easily interface your Pico with your human fingers and an RGB LED that you can use as an indicator, for notifications or just for adding extra rainbows.

Pico Display lets you turn a Pico into a compact user interface device for a bigger project, capable of giving instructions, displaying readouts and even incorporating elaborate nested menus. If you'd rather use your Pico as a standalone device you could make a little rotating slideshow of images, display beautiful graphs from sensor data or build your own Tamagotchi or matchbox sized text adventure game.

A Raspberry Pi Pico is not included - click here if you'd like to buy one!

Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.

Features

  • 1.14” 240x135 pixel IPS LCD screen
  • 4 x tactile buttons
  • RGB LED
  • Pre-soldered female headers for attaching to Pico
  • Compatible with Raspberry Pi Pico.
  • Fully assembled
  • No soldering required (as long as your Pico has header pins attached).
  • Dimensions: approx 53mm x 25mm x 9mm (L x W x H)
  • Screen usable area: approx 25mm x 15mm (L x W)
  • C/C++ and MicroPython libraries

Getting started

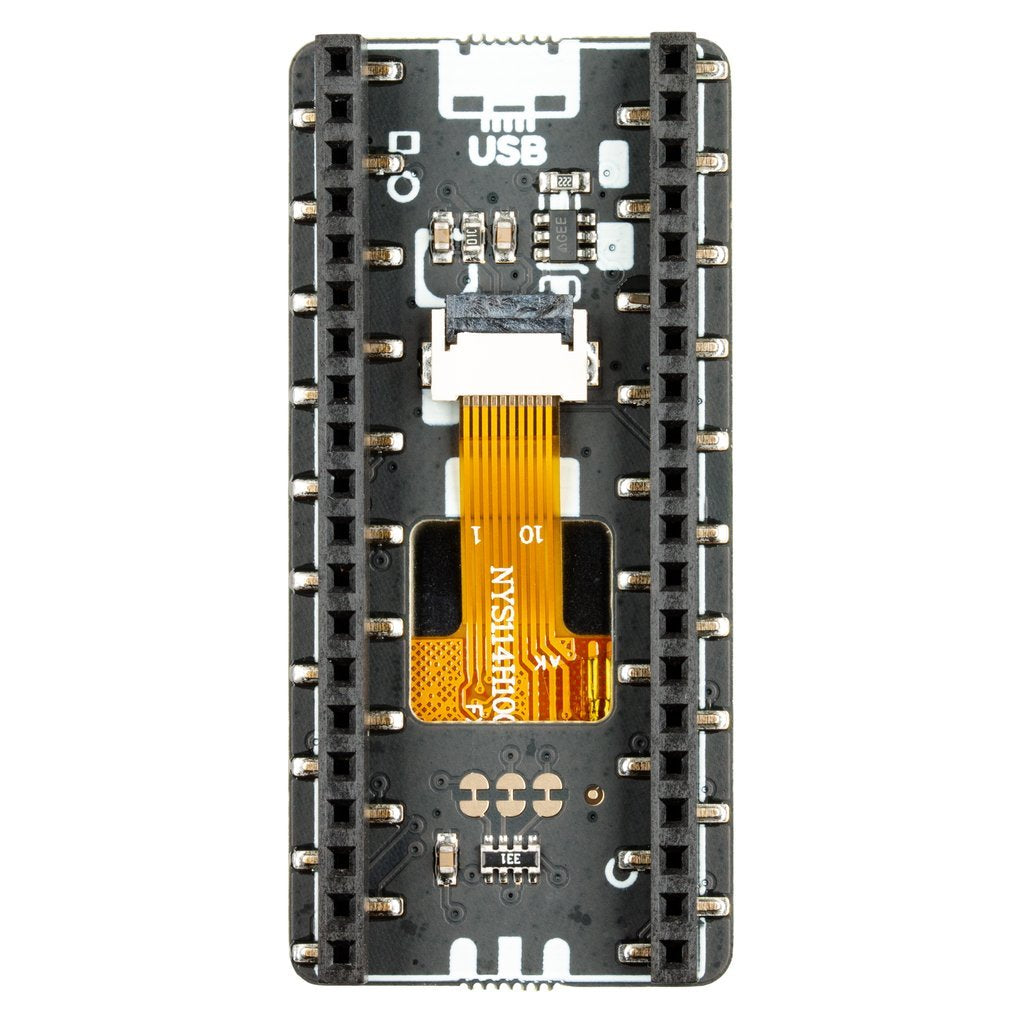

The labels on the underside of Pico Display will show you which way round to plug it into your Pico - just match up the USB port with the markings on the board.

The easiest way to get started with our Pico add-ons is by downloading and copying our custom MicroPython firmware to your Pico, it includes all the libraries you'll need. Click here for our beginner friendly tutorial!

Pinout

Pico Display Pack communicate with the LCD display via SPI on pins LCD_CSLCD_DCLCD_SCLK, and LCD_MOSI. We also PWM the BL_EN pin (with gamma correction) for full, linear, backlight control. LCD_RESET is tied to the RUN pin on Pico so the LCD will be fully reset whenever Pico is.

The four switches are wired up as SW_ASW_B, SW_X, and SW_Y.

There is also an onboard RGB LED (ideal to use an activity indicator!) which is also PWMed (with gamma correction) on pins LED_RLED_G, and LED_B. If you want to use the LED pins for something else there are three cuttable traces on the underside of the board.

Power is supplied through 3V3 meaning that you can use Pico Scroll Pack both on USB power and from external supplies (from 1.8V to 5.5V) making it ideal for battery powered projects.

Pinout diagram for Pico Display

About Raspberry Pi Pico

Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython, and ideal for using in all sorts of physical computing projects, devices and inventions - we're so excited to see what you make with it!

Pimoroni has called their Pico-sized add-ons packs, as they're designed to attach to the back of your Pico as if it were wearing a very stylish backpack (or a miniature jet pack, if you prefer). We've also got Pico bases (larger add-on boards with a space to mount your Pico on top) and some other boards that let you do interesting hackerly things like using multiple packs at once - click here to view them all!
