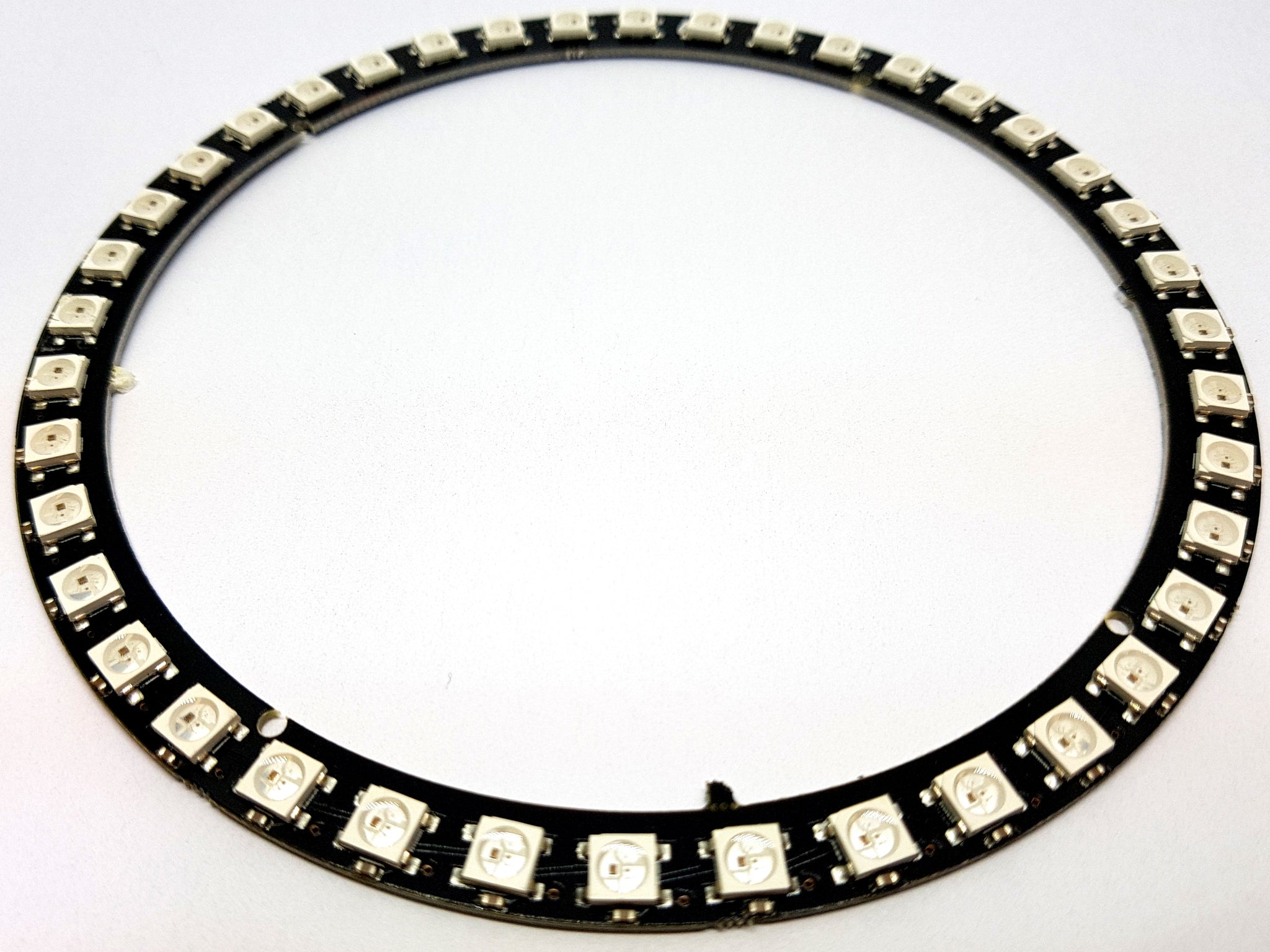

Large 40 RGB LED Ring WS2812-Compatible 5050 125 mm

C1095

Elmwood Electronics has stopped accepting orders. This product might be available at PiShop.ca. Please check this blog post about our recent team merger.

These are our own individually-addressable RGB LED rings. They are connected and driven the same way as Adafruit NeoPixel Rings.

Connections:

  • DI - Data In from microcontroller
  • 5V - 5 V power
  • GND - to Ground
  • DO - Data Out, to chain to next set of LEDs' DI connection

Connections are made to 2.54 mm / 0.1" pitch solder pads. Care should be taken not to support the LED ring from the solder pads.

Inside diameter approximately 107 mm, outside diameter approximately 125 mm. There are four 2 mm diameter mounting holes in the ring spaced at 90° intervals.
